| Brand Name : | TYANSHINE |
| Model Number : | TX-1818RGBW60FC120-CUHCNG-01 |
| Certification : | ISO9001:2008 ROHS SGS |
| Payment Terms : | Western Union, T/T, L/C |

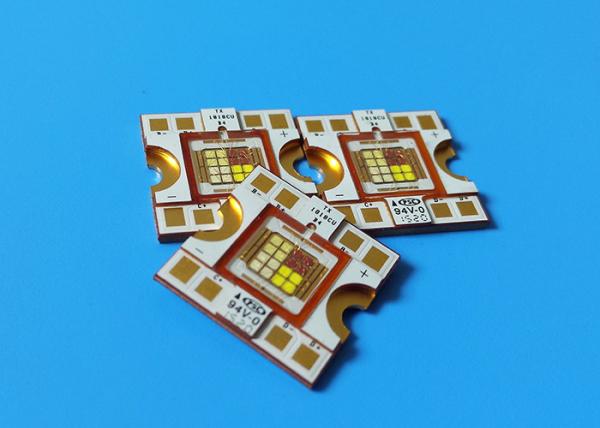

Multi Color 60W RGBW LED Array DC12V High Power 2000lm LED Modules
Features for 60W RGBW LEDs:
1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam
2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance
3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,
Specifications:
| Code | Color | Vf (V) | If (mA) | RθJ-C | Φv (lm) | Power | LES (mm) |
| TX-1818RGBW60FC120-CUHCNG-01 | RGBW | 12-16V | 1000 | 0.75 K/W | 1700-2000 | 60 | 9 x 9 |
Characteristics at If=1800mA (Ta=85°C)
| Parameter | Symbol | Emitting Color | Values | |||
| Min. | Typ. | Max. | ||||
| Luminous Flux | φv | R | 400lm | 460lm | - | |
| G | 520lm | 580lm | - | |||
| B | 120lm | 150lm | - | |||
| W | 700lm | 800lm | - | |||
| Dominant Wavelength | λd | R | 615nm | 620nm | 625nm | |
| G | 515nm | 520nm | 525nm | |||
| B | 452nm | 456nm | 460nm | |||
| Colour Temperature | CCT | W | 6500K | 7500K | 8500K | |
| Forward Voltage | Vf | R | 8V | 10V | 12V | |
| G | 12V | 14V | 16V | |||
| B | 12V | 14V | 16V | |||
| W | 12V | 14V | 16V | |||
Applications:
Entertainment lighting, Projection lights
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber optic lighting
|
|
